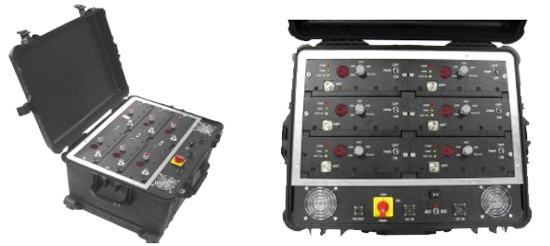

Mobile Phone and Wide Band Jammer System Model : CPB-2000VSW Cellular Phone with Wide Band Breaker
Contact Us
A. Specification
TX frequency 851/869 ~ 894 MHz
TX frequency 925/936 ~ 965 MHz
TX frequency 1800 ~ 1990 MHz
TX frequency 2110 ~ 2170 MHz
Total output power: 160W
( 800: 40W, 900:40W ,1800-1950:40W ,2100-2200:40W )
Signal source: PLL synthesized.
Stand-alone modular design and individual power control.
Power control: 10W/20W/30W/40W with digital display
Temperature over protection.
VSWR over protection for each modular.
Working status indicator for each band modular.
Remote control: RS-485
Output failure indicating with sound alarm and LED display
RF Cable: RG214 / 5M (SUHNER)
Sector Antenna: 12dBi each band.
EIRP for each band: over 400W.
Cover network standards: AMPS,N-AMPS, DCS,NMT,TACS,GSM,CDMA,TDMA,IDEN,UMTS
Designed to cut off down-link only, Therefore it doesn’t have Interference to base station and repeater.
Wide Band Breaker

TX frequency 20 ~ 110 MHz / Output 50W adjustable./ Stand-alone modular design and individual power control
Tx frequency 100 ~ 500MHz / Output 50W adjustable./ Stand-alone modular design and individual powercontro;
Full band barrage jamming with 3 lock out bands function.
Temperature over & VSWR over protection.
Whip antenna with 3 dB gain.
Input power: AC 110-240V / 50-60Hz or DC 20 ~ 28V DC / 60 ~ 65AH
Dimension：690mm(L)×698mm(W)×415mm(D) not include antenna .(Pelican 1640 case)
Weight：45 Kg (approximately)
Operating temperature: -20℃ ~ +60℃
Humidity: 5% ~ 90%
Jamming range：300 ~ 500M based on background signal strength ＜-80dBm I >
