INTRODUCTION |
|

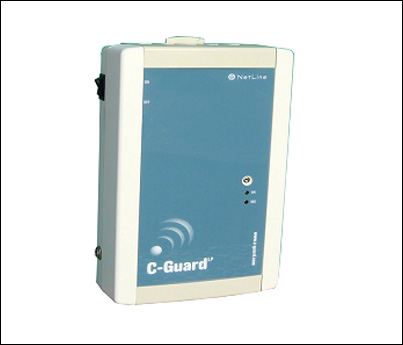

C-Guard LP is a high quality low power jamming device for mobile communications. The LP cell phone jammer unit is intended for blocking all mobile phone types within designated indoor areas. Its unique design combines effective jamming in a radius between 5-80 meters (depending on cellular signal strength at site) and strict compliance with international standards of safety and electromagnetic compatibility
|
|
APPLICATIONS
Acoustic Isolation |
- Theaters/cinemas
- Concert halls
- Lecture rooms/libraries
- Exclusive restaurants
- Trains
|
| Security and Privacy |
- Prisons
- Court houses
- Conference rooms
- Embassies
- Government facilities
- Financial institutions
- Gaming facilities
- Sensitive locations
- Recording studios
|
|
Health and Safety |
- Gas stations
- Power plants
- Industrial plants
- Hospitals
- Aircraft
|
|
|
- Prison facilities
- Protection of convoys and VIP vehicles
- Military bases
|
|
KEY FEATURES |
- Supports an unlimited frequency band composition according to customer requirements
- Scalable power output per frequency band up to 120W
- Supports multi-band combined output connectors
- Versatile signal sources customized to specific wireless communications air interfaceprotocol and modulation
- Jamming range up to 3 Km (depending on cellular signal strength at site)
|
|
SPECIFICATIONS |
|
TRANSMISSION |
|
|
RF Power per module |
5-500 mW |
|
Signal source |
PLL synthesized |
|
Input power |
8-20 Vcd (using external AC adapter) |
|
Modules per unit |
single/dual/triple band |
|
Remote control |
infrared |
|
Internal antenna |
Omni-directional for low band 0dBi |
|
External antenna (opt.) |
Omni-directional for high band 4dBi |
|
CELLULAR SYSTEMS |
|
|
Frequency bands |
|
|
Ari interface standards |
Analog : AMPS, N-AMPS, NMT, TACS
Digital : GSM, CDMA, TDMA, iDEN, UMTS |
|
PHYSICAL |
|
|
Size |
195mm x 115mm x 45 mm (dual - band)
195mm x 115mm x 65 mm (tri - band) |
|
Weight (w/o AC adapter) |
500 gr. (dual-band w/o AC adapter)
600 gr. (tri-band w/o AC adapter) |
|
ENVIRONMENTAL |
|
|
Operting temperature |
0 C to 50 C |
|
Vehicle installation |
50% to 80 % |
|
ACCESSORIES |
|
|
Recjareable battery |
1.5 AH |
|
|
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE |
