| Cellular Jammers, Model : C-Guard VHP |
|
Contact Us
|
|
INTRODUCTION |
|

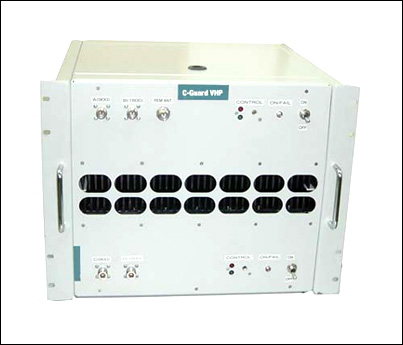

C-Guard VHP is a modular jamming system built into a 19-inchrack mounted housing. The VHP is a wireless communications jammer designed for fixed or vehicle installation, where high transmission power and multiple frequency bands are required to block wireless communications within a large coverage area.
|
|
APPLICATIONS |
- Prison facilities
- Protection of convoys and VIP vehicles
- Military bases
|
|
KEY FEATURES |
- Supports an unlimited frequency band composition according to customer requirements
- Scalable power output per frequency band up to 120W
- Supports multi-band combined output connectors
- Versatile signal sources customized to specific wireless communications air interfaceprotocol and modulation
- Jamming range up to 3 Km (depending on cellular signal strength at site)
|
|
SPECIFICATIONS |
|
TRANSMISSION |
|
|
Output Power per band |
15, 30, 50, 100, 120W |
|
Signal source |
PLL synthesized |
|
Modules per unit |
single/dual/triple/quad band |
|
Remote control |
Infrared |
|
External antennae |
Via N-type connectors |
|
CELLULAR SYSTEMS |
|
|
Frequency bands |
|
|
OPTIONAL MODULES |
|
|
2-Way Radio |
|
|
Satellite systems |
Iridiu, Inmadrsat, Globalstar, ICO, Thuraya |
|
Paging systems |
VHF, 200 MHz |
|
INPUT POWER |
|
|
Fixed installation |
110/220 Vac |
|
Vehicle installation |
12/24 Vdc |
|
FORM FACTOR |
|
|
Housing |
19-inch rack mount |
|
Weight |
As per configuration |
|
OPTIONS |
|
|
UPS |
Capacity per power outage duration |
|
Wircloss status roports |
Central console receives multiple reports from jaming units |
|
|
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE |
|
| |
|
